True Beadlocks vs. Hybrid Bead-Grip: Choosing the Right Rim for Low-PSI Traction

The Low-Pressure Problem

Off-roading is a game of traction, and traction is a game of tire pressure. When you air down to increase your contact patch, you lose the internal air pressure that keeps your tire's bead seated firmly against the rim. Go too low on a standard wheel, and a sharp turn or a rock strike can pop the bead, leaving you stranded with a flat that is nearly impossible to reseat on the trail.

To solve this, enthusiasts generally choose between two distinct technologies: True Beadlocks and Hybrid "Bead-Grip" wheels. Understanding the mechanical differences is vital before you click "buy."

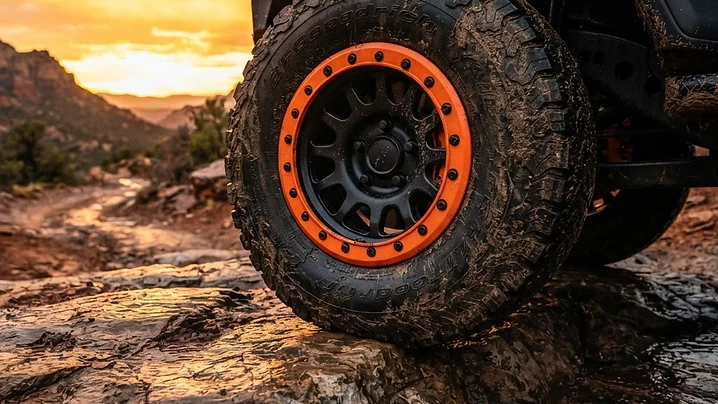

True Beadlocks: The Ultimate Clamping Force

A true beadlock wheel uses a mechanical clamping system. Instead of the tire bead sitting inside the rim, the outer bead is placed on a shelf on the wheel's face. A heavy-duty metal ring is then bolted over the bead, sandwiching the rubber against the wheel with dozens of grade-8 bolts.

• Best For: Dedicated rock crawlers and rigs running sub-10 PSI.
• The Trade-off: They are significantly heavier, which increases unsprung weight and affects braking.
• Maintenance: You must manually check the torque on every bolt every 500 to 1,000 miles. A single loose bolt can lead to air leaks or catastrophic failure.
• Legality: Most true beadlocks are labeled "For Off-Road Use Only" and are not DOT-compliant for highway use.

Hybrid Bead-Grip Technology: The Modern Middle Ground

Hybrid wheels, such as Method’s Bead Grip® or similar designs from other manufacturers, use internal geometry rather than external hardware. These wheels feature enlarged safety humps on the bead seat and aggressive ridges (siping) that bite into the tire bead from the inside.

• Best For: Overlanders, daily drivers, and weekend warriors running 12–18 PSI.
• The Benefits: They are street-legal, lighter than true beadlocks, and require no special maintenance. They offer significantly more security than a standard wheel without the legal or mechanical headaches.
• The Limit: While they are a massive upgrade over stock, they cannot match the physical clamping power of a bolted ring at extreme, near-zero pressures.

Buyer’s Checklist: Which One Do You Need?

Before upgrading your wheels on RimRevival, ask yourself these three questions:

1. What is your target PSI? If you rarely go below 15 PSI, a hybrid wheel is more than enough. If you regularly drop to 5 PSI for vertical rock walls, buy true beadlocks.
2. Is this your daily driver? If you commute on the highway, stick with hybrid or standard wheels to avoid legal liability and the constant need for torque maintenance.
3. What is your weight budget? True beadlocks can add 10–15 lbs per corner. Ensure your suspension and braking system can handle the extra rotational mass.
