Coilovers 101: What to Know Before You Drop Your Ride

Coilovers 101: What to Know Before You Drop Your Ride

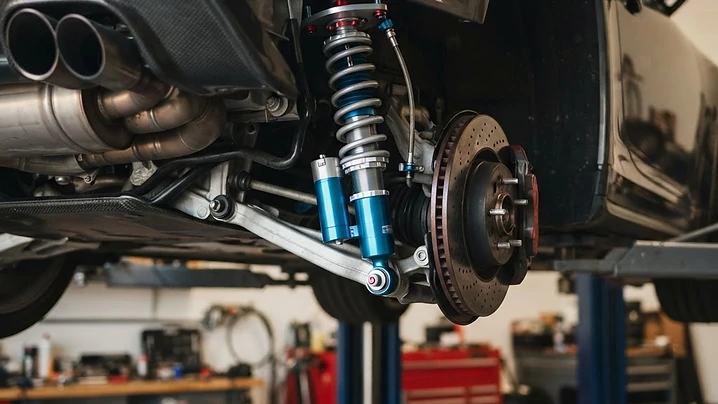

Coilovers are the single biggest handling upgrade most enthusiasts make — and also one of the most misunderstood. A coilover (short for coil spring over shock) combines a damper and a matched spring into one assembly, often with adjustable ride height and sometimes adjustable damping.

What a Coilover Actually Does

A coilover does two jobs at once: it sets how far the wheel can travel (spring rate and length) and it controls how quickly that travel happens (damper valving). The spring holds the car up and absorbs bumps; the damper keeps the spring from bouncing endlessly after the bump.

The reason coilovers matter is that they're matched. Off-the-shelf lowering springs on stock shocks often push the damper into its bump zone, which wrecks both ride quality and performance. A good coilover is engineered as a pair.

The Three Main Types

• Non-adjustable (fixed) — Spring and damper are pre-matched to one ride height and damping rate. Simple, reliable, and the cheapest entry point.
• Single-adjustable — Typically damping adjustability only (a knob on top changes rebound or a combined rebound/compression curve). Ride height is usually still adjustable via the threaded collar.
• Double-adjustable / track-grade — Separate rebound and compression knobs, plus ride height adjustment. Built for track use and serious tuning.

What Actually Matters When Buying

1. Spring rate — Softer is more comfortable, stiffer is sharper but harsh. Match the rate to your tire and use case.
2. Damper quality — A well-valved single-adjustable beats a cheap double-adjustable. Look for reputable brands.
3. Total travel — Too little travel and you'll bottom out on every bump. Check the stroke length, not just the drop amount. -4. Adjustability range — Make sure the ride-height range covers what you actually want.

The Honest Take

Most street cars don't need double-adjustable coilovers. A good set of single-adjustables, properly aligned, will out-handle a poorly-tuned premium set every time. Buy the right tool, set it up correctly, and align afterward — that's where the real improvement comes from.
